tutorial on programming the serial port on linux distros like ubuntu,fedora ,mint linux,debian
Hello Folks,
This is a tutorial on how to program the Serial Ports on your Linux box.Serial Ports are nice little interfaces on the PC which helps you to interface your embedded system projects using a minimum number of wires.In this tutorial we will write a small program that will send and receive ASCII characters to a microcontroller development board.
One problem with the traditional serial ports is that they are now legacy hardware and are being phased out by the PC manufacturers and most laptops have USB ports only,this problem can be easily solved by using a variety of USB to Serial Converters available in the market,eg USB2SERIAL V2.0.
Please note that in this tutorial I am using a USB to Serial Converter based on FT232 from FTDI. You can use any FT232 based board ( other USB converter boards based on different chip sets should work,but i have not tested it ) or you can buy the one I am using here.
If you have traditional D subminiature (DB9) Serial Ports,just identify the relevant pins (RXD, TXD,RTS,DTR and Ground) and continue with the tutorial.
In this tutorial we are going to use the C language to program the serial port on a Linux Operating system(Ubuntu/LinuxMint).The compiler used is gcc which is freely available along with the OS.
Sourcecodes
link to xanthium enterprises repo on Github containing code for serial communication between a Linux os and micro controller
Please note that the source codes on the website show only the relevant sections to highlight the process of programming the serial port.
Contact Us to Enquire about the full Source codes
Serial Ports under Linux

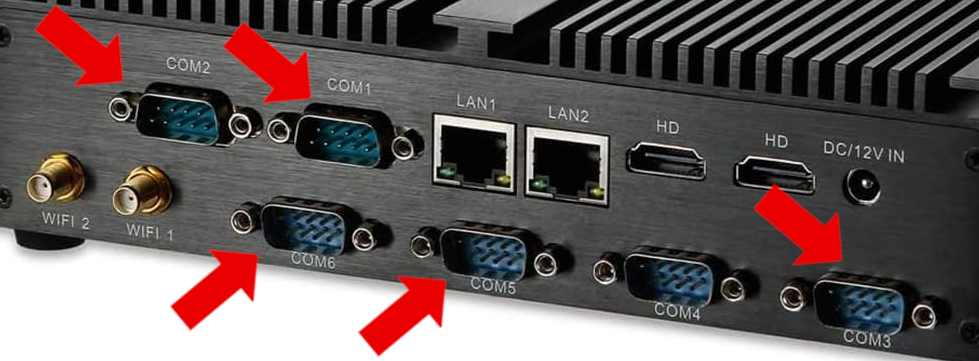

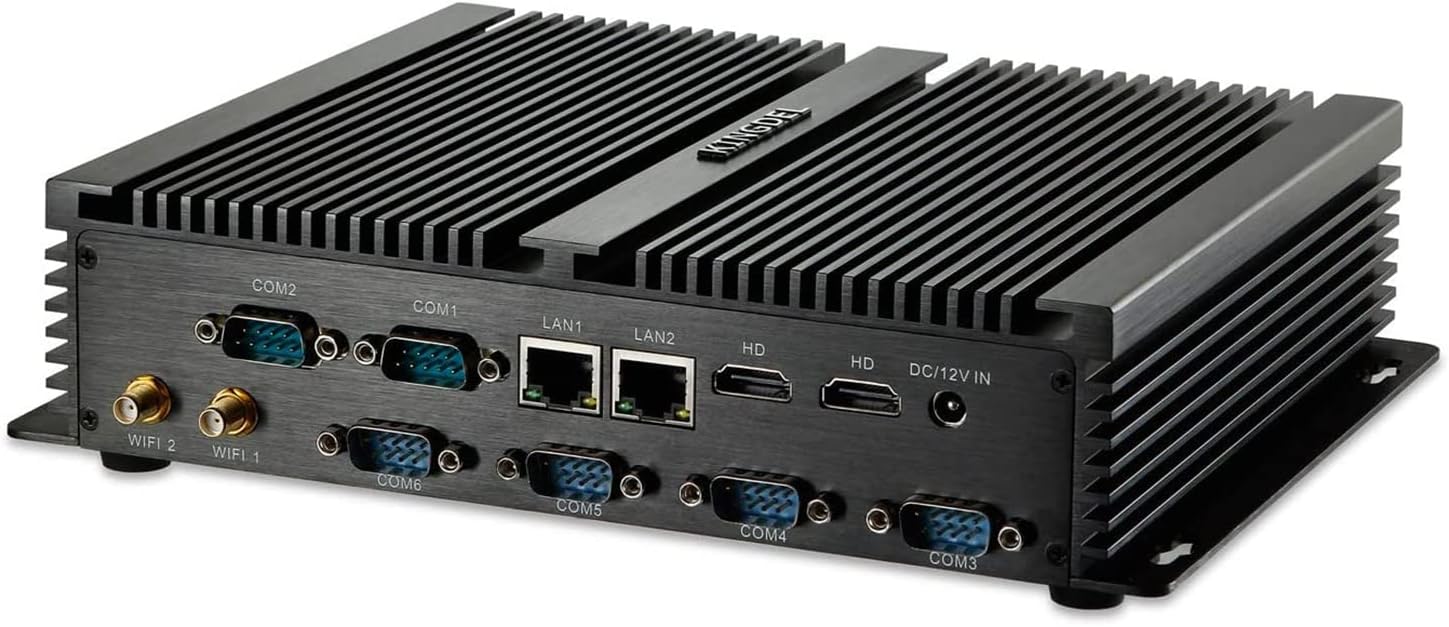

Traditional hardware serial ports under Linux are named as ttyS* where * can be 1,2,3... etc for eg ttyS1,ttyS2,ttyS23 ...... etc.They are similar to COM1,COM2 etc under a windows box.
While
USB to Serial Converter based serial ports are usually named as ttyUSB* where * can be 1,2,3... etc for eg ttyUSB0,ttyUSB1 etc .
In Linux the hardware components like serial ports are treated like files and are grouped together in the /dev folder in the file system.if you navigate into the /dev folder and list the files using ls command you can see the files corresponding to various hardware devices.

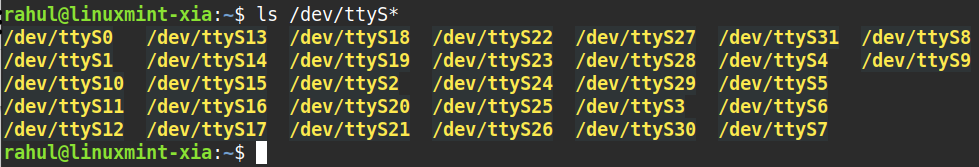

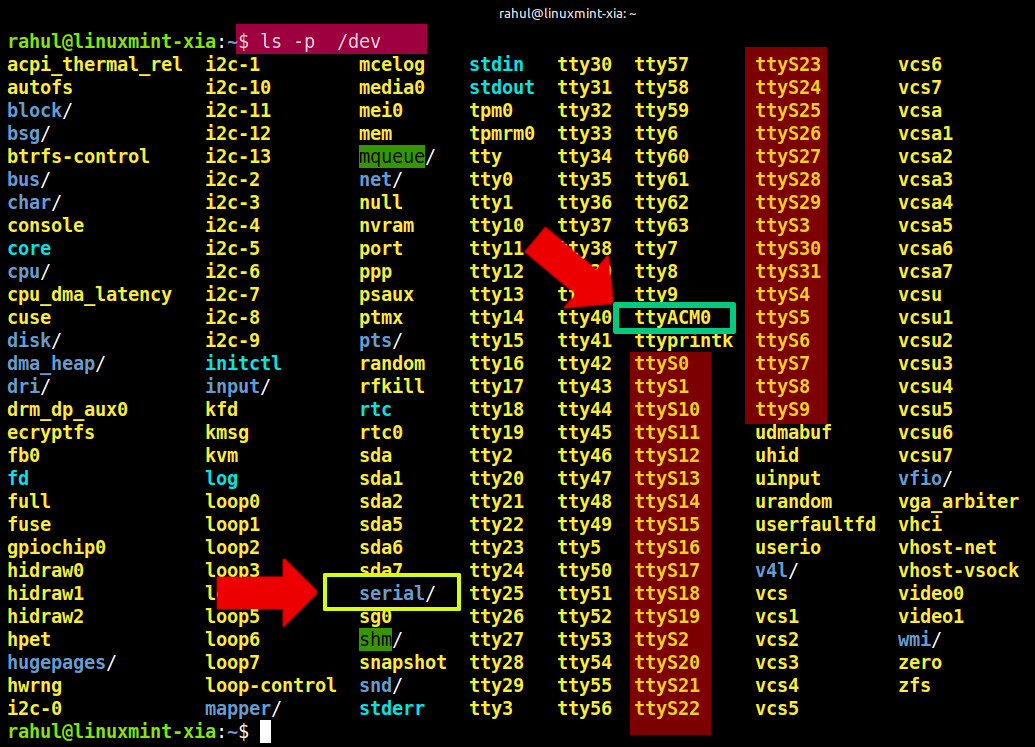

listing files corrosponding to various hardware using ls on ubuntu linux
Now you can see a large number of serial ports listed in the /dev directory like ttyS28,ttyS23 etc.Now to identify which of the ttyS* corrosponds to your hardware serial port run the following command on the terminal.
dmesg | grep ttyS
if you are getting an output like this
[ 37.531286] serial8250: ttyS0 at I/O 0x3f8 (irq = 4) is a 16550A
it means that ttyS0 is your hardware serial port connected to your computer .
Now if you dont have any hardware serial ports ( like in my case ) the command will not print anything,like this.

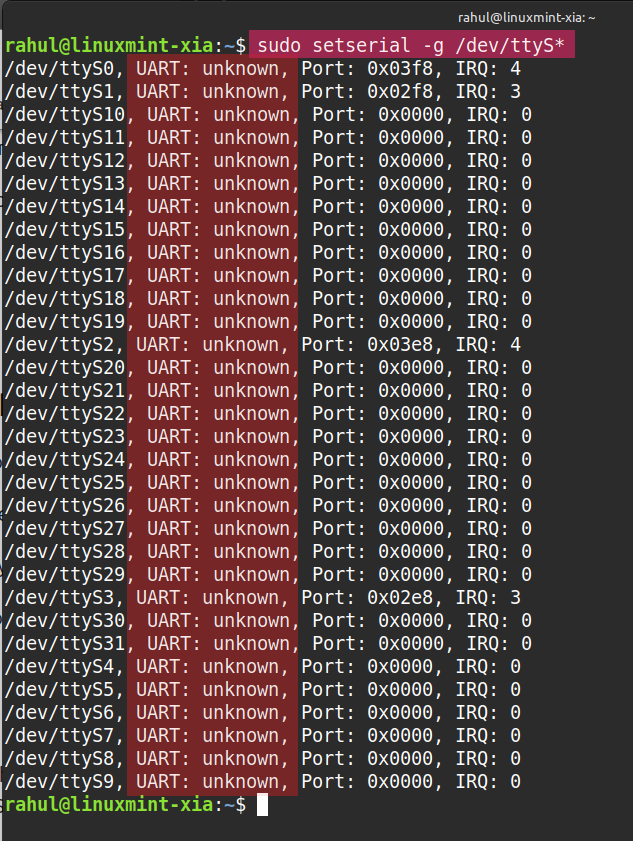

identifying hardware serial ports on linux for serial port programming

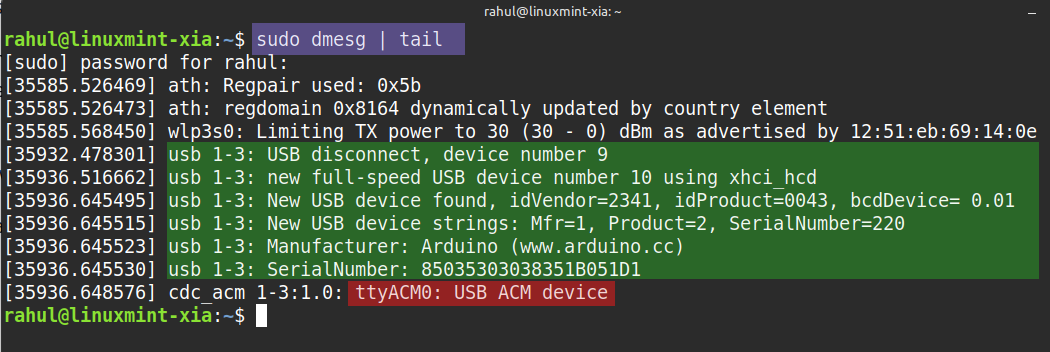

Now to check for any USB to serial converter use dmesg | grep tty command.

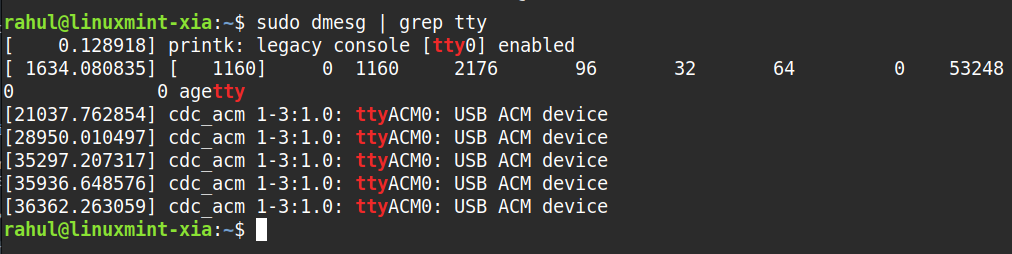

ubuntu displaying USB to serial converter device for serial port programming on ubuntu.jpg
You can see that FTDI based USB to Serial Converter is attached to ttyUSB0.Now you can use the ttyUSB0 to communicate with your serial converter .
Another place where you can see the attached serial devices is the /dev/serial/by-id folder.

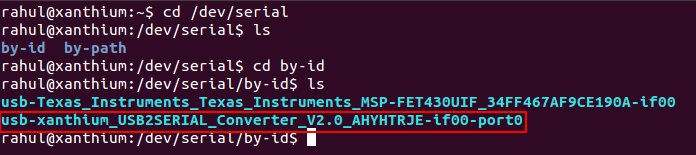

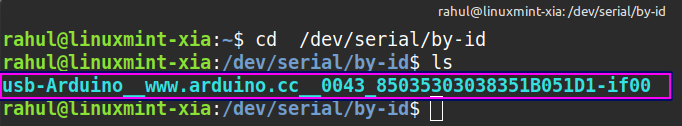

displaying attached serial devices in the /dev/serial/by-id folder on ubuntu linux
Programming the Serial Port
In this tutorial i am going to use C language to program the Serial port,compiler used is GCC.
If you are interested to know more about the internals of the serial port you can refer “The Serial Programming Guide for POSIX Operating Systems” written by Michael R.Sweet.
To perform serial I/O under linux we are going to use the termios API.termios API supports two modes of accessing the serial ports.
1. Cannonical Mode
2. NonCannonical Mode
Cannonical mode is the default mode and is used for accessing terminals and stuff.For our tutorial we are going to use the second mode called the non cannonical mode.More details about the difference between the modes are available in the above book .
Opening and Closing the Serial Port
Opening a serial port in Linux is accomplished by using the open() system call and closing the serial port is done using the close() system call.
The open() system call takes two arguments ,name of the file to be opened (here serial port ) and the various parameters associated with it.It returns a -1 on failure and a positive integer on success.
int fd ;
fd = open("/dev/ttyUSB0",O_RDWR | O_NOCTTY);
here /dev/ttyUSB0 is the name of the serial port you are using (here FTDI based USB2SERIAL Converter board),If you are using a hardware serial port it will be some thing like /dev/ttyS1 or /dev/ttyS2.
gcc -o serial serial.cNow save the file and compile it using GCC at the terminal.
Please make sure that you are using the correct serial port name in the open() command.In the above code it is ttyUSB0 , it may be different in your system.

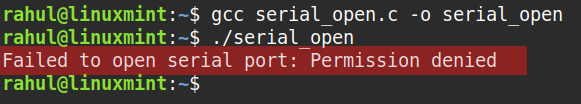

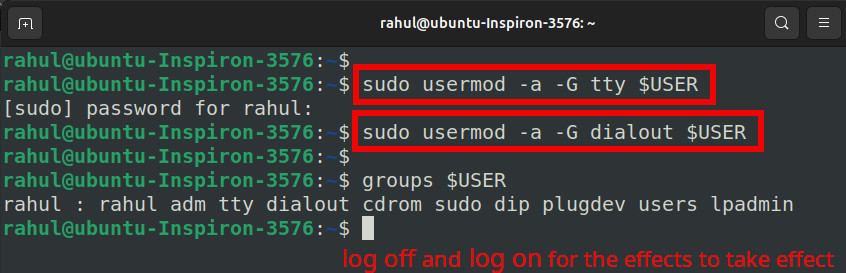

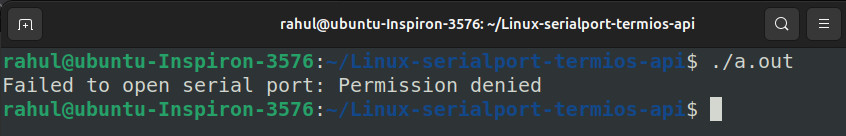

Another important fact regarding the Linux system is that Linux will only allow you to access the hardware resources from root account.So you will have to execute the resulting binary as root ,just use the sudo command.
After the code is compiled successfully,execute the binary as root by issuing the following command.Enter the password for root when prompted.
sudo ./serial
Please make sure your hardware is connected before executing the binary, in case you are using a USB to serial converter.

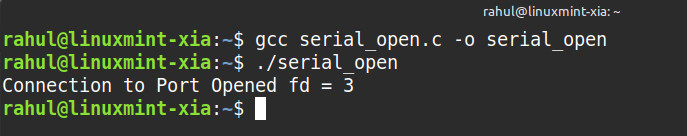

serial port opened in linux for serial communication with msp430
Configuring the termios structure
After opening and closing the serial port successfully ,its time to configure the correct mode,baudrate,data format,number of start/stop bits etc .In Linux it is done by a structure called termios.
And this is how the structure looks like
struct termios
{
tcflag_t c_iflag; /* input mode flags */
tcflag_t c_oflag; /* output mode flags */
tcflag_t c_cflag; /* control mode flags */
tcflag_t c_lflag; /* local mode flags */
cc_t c_line; /* line discipline */
cc_t c_cc[NCCS]; /* control characters */
};
Now first thing to do is to declare a structure of type termios
struct termios SerialPortSettings;
Now to configure the termios structure according to our needs we use two functions,tcgetattr() and tcsetattr().
tcgetattr() is used to get the current settings of the serial port to the structure we just declared.It takes two arguments, the file descriptor fd corresponding to the serial port we have opened and the address of the structure we just declared.
tcgetattr(fd, &SerialPortSettings);
After getting the current settings we are going to change it suit our needs.We are going to configure the serial port to transmit at 9600 baudrate , 8 bits, No parity ,1 Stop bit ,the 8N1 configuration.
Setting the Baudrate
In Linux ,there is an option to set different read and write speeds but it is recommended to set the same speed for both read and write.
The Baudrate is set using two functions,
cfsetispeed() for setting the input speed or read speed and
cfsetospeed() for setting the output speed or write speed.
Now let's set the speed for both reading and writing at 9600 bps
cfsetispeed(&SerialPortSettings,B9600);
cfsetospeed(&SerialPortSettings,B9600);
you can use other standard baudrates like 4800,19200,38400 etc all Baudrate constants have to be prefixed with a 'B' like B4800 , B19200 etc .
Please note that the MSP430 microcontroller code provided (microcontroller side) uses 9600bps 8N1 format for communicating with the PC.
Configuring data format,Start/Stop bits ,Parity
The control flags ( c_cflag ) of the termios structure configures the data format (8bit or 7 bits for data),Parity(Even,Odd,None) and the number of start and stop bits to use while communicating.
Configuring these information involves setting and clearing individual bits of the control flags.It is advisable to check out “Bit manipulation in C language” in google/wikipedia,if you are not familiar.
Configuring other Options
Turn off hardware based flow control (RTS/CTS).
SerialPortSettings.c_cflag &= ~CRTSCTS;
Turn on the receiver of the serial port (CREAD),other wise reading from the serial port will not work.
SerialPortSettings.c_cflag |= CREAD | CLOCAL;
Turn off software based flow control (XON/XOFF).
SerialPortSettings.c_iflag &= ~(IXON | IXOFF | IXANY);
Setting the mode of operation,the default mode of operation of serial port in Linux is the Cannonical mode.For Serial communications with outside devices like serial modems,mice etc NON Cannonical mode is recommended.
SerialPortSettings.c_iflag &= ~(ICANON | ECHO | ECHOE | ISIG);
More information about the functions and constants discussed above can be found in the termios manual page.You can easly access them by typing
man termios on your terminal.
The man pages are also available online at www.man7.org.
After you have configured all of the required bitfields of the terminos structure.You can use the tcsetattr() function to set them.tcsetattr() takes three arguments,the first and last arguments are same as in the tcgetattr()function.The second one TCSANOW tells to make the changes now without waiting.
tcsetattr(fd,TCSANOW,&SerialPortSettings)
Hardware Connections
Now we will create a small serial link between a microcontroller board and a PC running Linux OS to test out reading and writing from a PC serial port .
Microcontroller used here is MSP430G2553 from Texas instruments on Launchpad development board.Please note that you can use any microcontroller like 8051 or Atmel AVR on the embedded system side.Since this is an article about setting up and configuring the serial port on Linux,the microcontroller side code is explained here.
The PC is connected to the microcontroller board using a null modem cable.The RX of the PC (serial port) is connected to the TX of the Microcontroller and vice versa.The Grounds of PC and microcontroller are connected together.
Here my PC do not have a hardware DB9 serial port(9 pin),So i am using a FTDI based USB to Serial converter called USB2SERIAL which converts the USB signals to TTL compatible serial outputs (RXD and TXD). you can directly connect the outputs of USB2SERIAL to MSP430 microcontroller as shown in the below block diagram.USB2SERIAL also offers selectable 3V/5V TTL outputs for interfacing to 3.3V logic microcontrollers like MSP430.

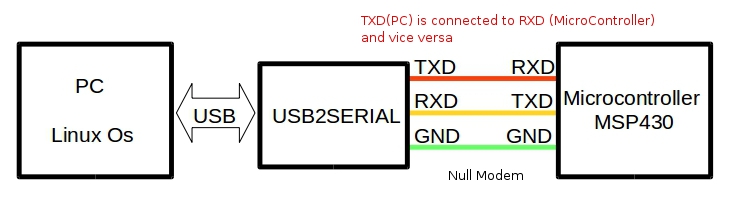

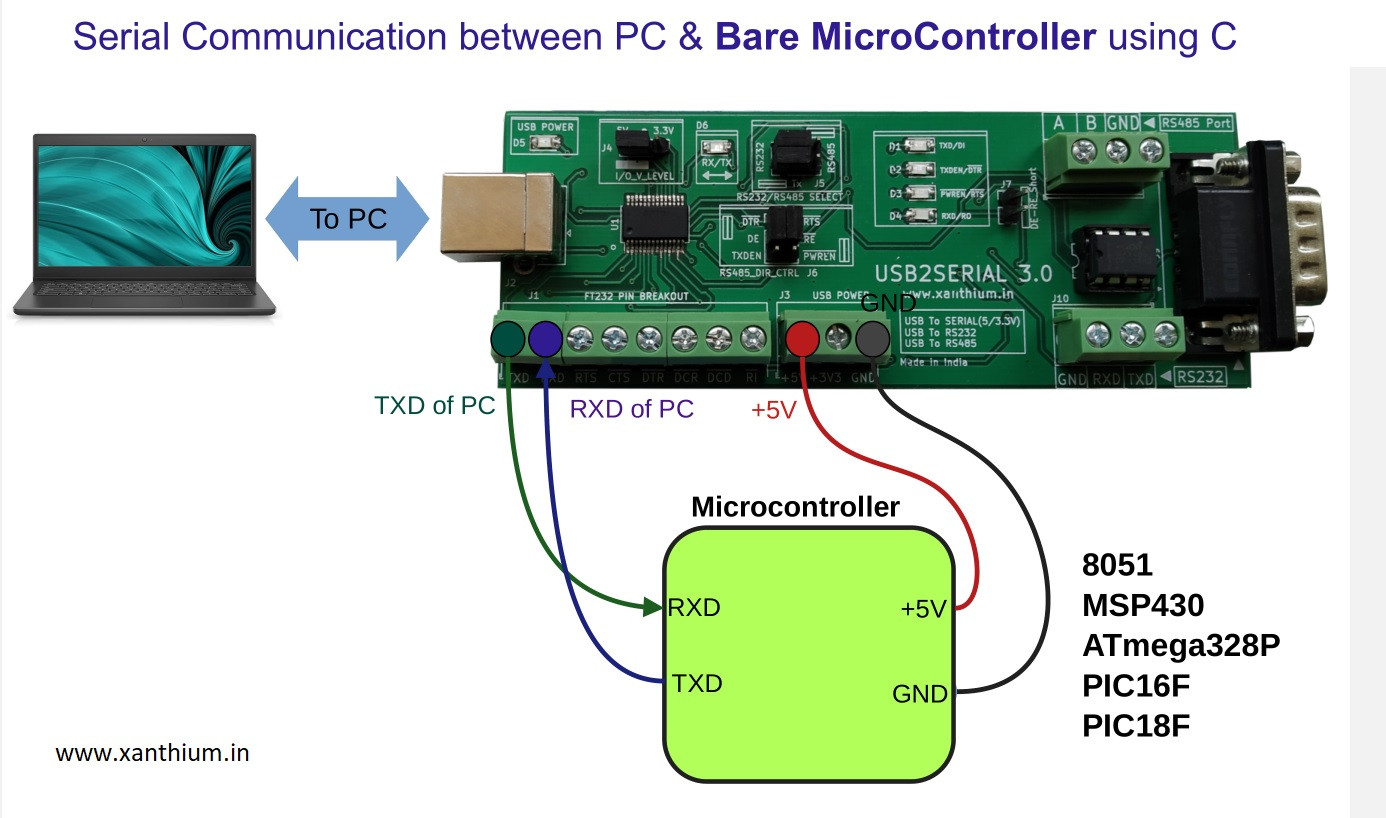

Null modem connection between a linux PC and an MSP430 micro controller for communicating using serial port
MSP430 connected to a USB to serial converter for serial communication with a linux operating system
Please noter that if you are using a DB9 RS232 SerialPort of your PC ,you will have to build a RS232 signal level converter at the microcontroller side to decode the RS232 signal.Connecting the RS232 Lines from the PC directly to microcontroller UART directly will damage the chip.
Writing data into Serial Port
Writing data to serial port is accomplished using the write() system call.
Sucessfull Serial port communication with Linux PC.Writing data to serial port using the write() system call on linux
Reading Data from the Serial Port
Reading data from the serial port is accomplished by using the read() system call.
In the zip file you can find “SerialPort_read.c” which contains the complete program.Compile the program using gcc and run it.Remember to use sudo so that your executable runs as root.
After providing the root password,the program will execute and wait for a character to be send by the microcontroller.
serial program waiting for a character to be received
You can now reset the MSP430 microcontroller connected to the USB2SERIAL converter to transmit the string .
Program receiving the data send by MSP430
Program receives the “Hello from MSP430” string send by the microcontroller and displays it on the terminal.
If you want to know how to control the RTS and DTR pins of the serial port you can check out our next section.The section outlines ioctl() calls used to control the RTS and DTR pins and uses them to build a small RS485 network controlled by a Linux Box.
